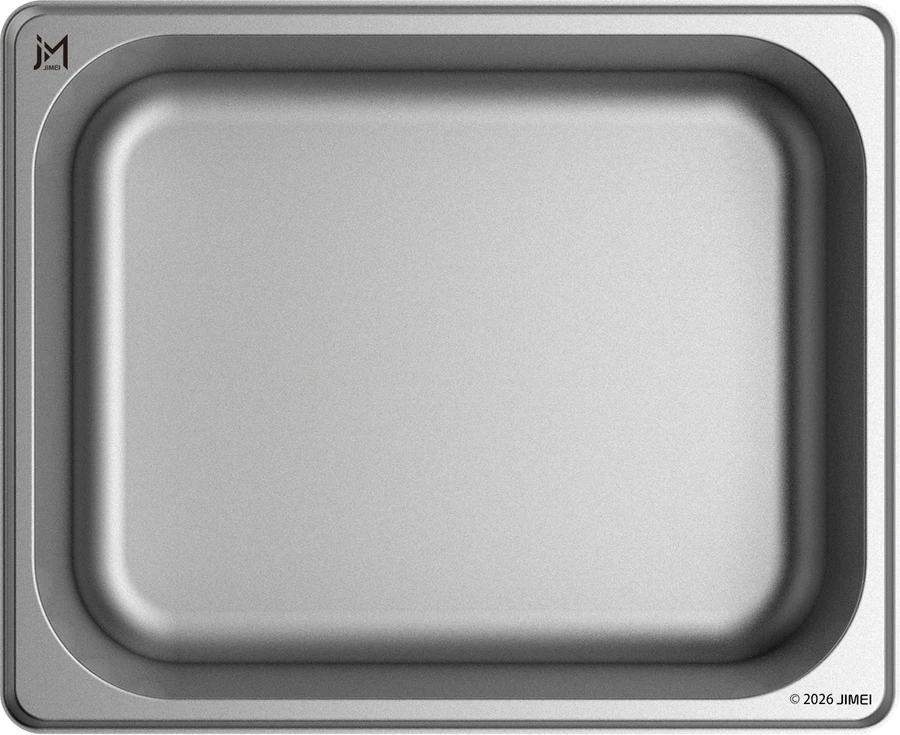

Top view
Specification 1/2×150 · 325 × 265 × 150 mm
Specification 1/2×150 · 325 × 265 × 150 mmAJ07-GN1215
American Rolled Edge / GN PANS
American-Style Rolled Edge GN Pans
Rolled edges and a straight-sided profile. Check the edge design and unit weight against your purchasing requirements.
AJ07-GN1215325 × 265 × 150 mm
- Unit weight
- 520 g
- Inner corner radius (R)
- R50
- Pieces per carton
- 48 pcs / carton
Need a different weight, thickness or packaging? Send customization requirements
SPECIFICATION / AJ07-GN1215
Specifications
- External dimensions
- 325 × 265 × 150 mm
- Depth / Height
- 150 mm
- Internal opening length
- 299 mm
- Internal opening width
- 239 mm
- Inner corner radius (R)
- R50
- Unit weight
- 520 g
- Material
- 201#
- Surface finish
- Electrolytic finish
- Thickness
- 0.7 mm
- Pieces per carton
- 48 pcs / carton
- Carton dimensions
- 55 × 34 × 46 cm
- Estimated gross weight per carton
- 25.96 kg
Internal opening length and width refer to the opening at the top of the pan. Images support identification and comparison; confirm equipment fit, matching lids and customization requirements against the specific SKU.
Series specification table
40 standard versions
| SKU / Series | Specification | Thickness | Unit weight | Pieces per carton | Actions |
|---|---|---|---|---|---|
| AJ07-GN1102 ↗ American-Style Rolled Edge | GN 1/1 · 20 mm | 0.7 mm | 520 g | 50 pcs | |
| AJ07-GN1104 ↗ American-Style Rolled Edge | GN 1/1 · 40 mm | 0.7 mm | 550 g | 50 pcs | |
| AJ07-GN1106 ↗ American-Style Rolled Edge | GN 1/1 · 65 mm | 0.7 mm | 640 g | 45 pcs | |
| AJ07-GN1110 ↗ American-Style Rolled Edge | GN 1/1 · 100 mm | 0.7 mm | 730 g | 40 pcs | |
| AJ07-GN1115 ↗ American-Style Rolled Edge | GN 1/1 · 150 mm | 0.7 mm | 960 g | 24 pcs | |
| AJ07-GN1120 ↗ American-Style Rolled Edge | GN 1/1 · 200 mm | 0.7 mm | 1522 g | 18 pcs | |
| AJ07-GN11L ↗ American-Style Rolled Edge | GN 1/1 · Lid | 0.7 mm | 430 g | 48 pcs | |
| AJ07-GN1202 ↗ American-Style Rolled Edge | GN 1/2 · 20 mm | 0.7 mm | 272 g | 60 pcs | |
| AJ07-GN1204 ↗ American-Style Rolled Edge | GN 1/2 · 40 mm | 0.7 mm | 272 g | 60 pcs | |
| AJ07-GN1206 ↗ American-Style Rolled Edge | GN 1/2 · 65 mm | 0.7 mm | 340 g | 80 pcs | |
| AJ07-GN1210 ↗ American-Style Rolled Edge | GN 1/2 · 100 mm | 0.7 mm | 400 g | 70 pcs | |
| AJ07-GN1215 ↗ American-Style Rolled Edge | GN 1/2 · 150 mm | 0.7 mm | 520 g | 48 pcs |
Total 40 variants · 1 / 4 pages
