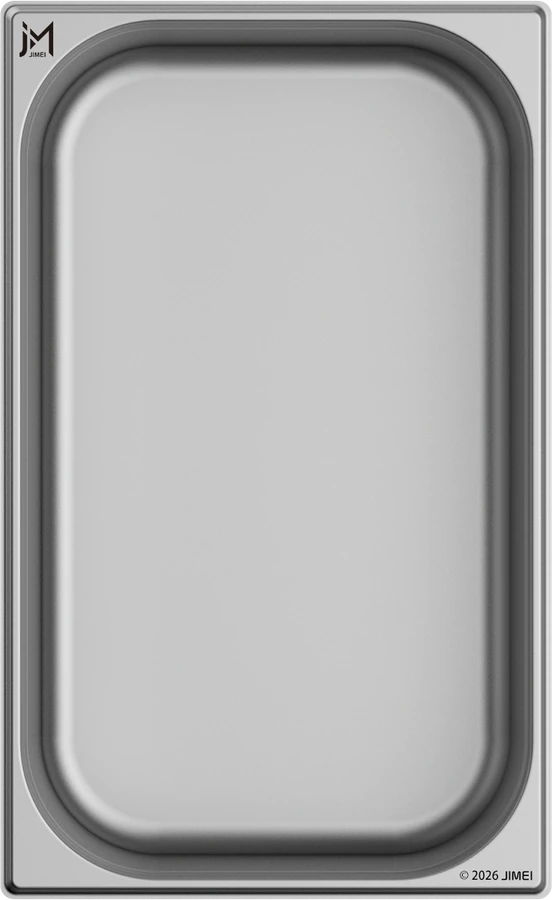

Top view
Specification 1/1×150 · 530 × 325 × 150 mm
Specification 1/1×150 · 530 × 325 × 150 mmEU07-GN1115
European Style / GN PANS
European Style GN Pans
Generous internal corners with smooth transitions. Check the internal corners, opening and matching dimensions to select a suitable version.
EU07-GN1115530 × 325 × 150 mm
- Unit weight
- 1568 g
- Inner corner radius (R)
- R80
- Pieces per carton
- 18 pcs / carton
Need a different weight, thickness or packaging? Send customization requirements
SPECIFICATION / EU07-GN1115
Specifications
- External dimensions
- 530 × 325 × 150 mm
- Depth / Height
- 150 mm
- Internal opening length
- 505 mm
- Internal opening width
- 300 mm
- Inner corner radius (R)
- R80
- Unit weight
- 1568 g
- Material
- 201#
- Surface finish
- Electrolytic finish
- Thickness
- 0.7 mm
- Pieces per carton
- 18 pcs / carton
- Carton dimensions
- 54 × 34 × 43 cm
- Estimated gross weight per carton
- 30.7 kg
Internal opening length and width refer to the opening at the top of the pan. Images support identification and comparison; confirm equipment fit, matching lids and customization requirements against the specific SKU.
Series specification table
130 standard versions
| SKU / Series | Specification | Thickness | Unit weight | Pieces per carton | Actions |
|---|---|---|---|---|---|
| EU05-GN1102 ↗ European Style | GN 1/1 · 20 mm | 0.5 mm | 627 g | 48 pcs | |
| EU06-GN1102 ↗ European Style | GN 1/1 · 20 mm | 0.6 mm | 789 g | 48 pcs | |
| EU07-GN1102 ↗ European Style | GN 1/1 · 20 mm | 0.7 mm | 884 g | 48 pcs | |
| EU05-GN1104 ↗ European Style | GN 1/1 · 40 mm | 0.5 mm | 684 g | 48 pcs | |
| EU06-GN1104 ↗ European Style | GN 1/1 · 40 mm | 0.6 mm | 836 g | 48 pcs | |
| EU07-GN1104 ↗ European Style | GN 1/1 · 40 mm | 0.7 mm | 1017 g | 48 pcs | |
| EU05-GN1106 ↗ European Style | GN 1/1 · 65 mm | 0.5 mm | 732 g | 24 pcs | |
| EU06-GN1106 ↗ European Style | GN 1/1 · 65 mm | 0.6 mm | 950 g | 24 pcs | |
| EU07-GN1106 ↗ European Style | GN 1/1 · 65 mm | 0.7 mm | 1131 g | 24 pcs | |
| EU05-GN1110 ↗ European Style | GN 1/1 · 100 mm | 0.5 mm | 836 g | 24 pcs | |
| EU06-GN1110 ↗ European Style | GN 1/1 · 100 mm | 0.6 mm | 1093 g | 24 pcs | |
| EU07-GN1110 ↗ European Style | GN 1/1 · 100 mm | 0.7 mm | 1283 g | 24 pcs |
Total 130 variants · 1 / 11 pages
