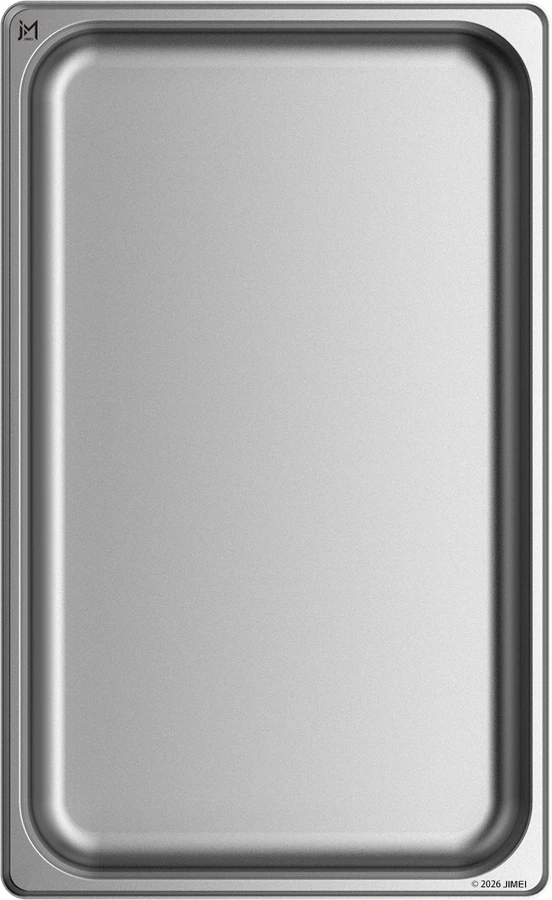

Top view
Specification 1/1×65 · 530 × 325 × 65 mm
Specification 1/1×65 · 530 × 325 × 65 mmAT07-GN1106
American Anti-Jam / GN PANS
American-Style Anti-Jam GN Pans
A clearly defined anti-jam shoulder. Review the shoulder, rim and stacking structure before choosing the specification.
AT07-GN1106530 × 325 × 65 mm
- Unit weight
- 865 g
- Inner corner radius (R)
- R45
- Pieces per carton
- 40 pcs / carton
Need a different weight, thickness or packaging? Send customization requirements
SPECIFICATION / AT07-GN1106
Specifications
- Overall length
- 530 mm
- Overall width
- 325 mm
- Overall height
- 65 mm
- Inner corner radius (R)
- R45
- Unit weight
- 865 g
- Internal length
- 505 mm
- Internal width
- 300 mm
- Material
- 201#
- Surface finish
- Electrolytic finish
- Thickness
- 0.7 mm
- Pieces per carton
- 40 pcs/carton
- Carton length
- 55 cm
- Carton width
- 35 cm
- Carton height
- 32 cm
- Estimated gross weight per carton
- 35.6 kg
Internal opening length and width refer to the opening at the top of the pan. Images support identification and comparison; confirm equipment fit, matching lids and customization requirements against the specific SKU.
Series specification table
59 standard versions
| SKU / Series | Specification | Thickness | Unit weight | Pieces per carton | Actions |
|---|---|---|---|---|---|
| AT07-GN1102 ↗ American-Style Anti-Jam | GN 1/1 · 20 mm | 0.7 mm | 670 g | 50 pcs | |
| AT07-GN1104 ↗ American-Style Anti-Jam | GN 1/1 · 40 mm | 0.7 mm | 730 g | 50 pcs | |
| AT07-GN1106 ↗ American-Style Anti-Jam | GN 1/1 · 65 mm | 0.7 mm | 865 g | 40 pcs | |
| AT07-GN1110 ↗ American-Style Anti-Jam | GN 1/1 · 100 mm | 0.7 mm | 950 g | 30 pcs | |
| AT07-GN1115 ↗ American-Style Anti-Jam | GN 1/1 · 150 mm | 0.7 mm | 1140 g | 30 pcs | |
| AT07-GN11L ↗ American-Style Anti-Jam | GN 1/1 · Lid | 0.7 mm | 640 g | 50 pcs | |
| AT07-GN1202 ↗ American-Style Anti-Jam | GN 1/2 · 20 mm | 0.7 mm | 320 g | 100 pcs | |
| AT07-GN1204 ↗ American-Style Anti-Jam | GN 1/2 · 40 mm | 0.7 mm | 370 g | 100 pcs | |
| AT07-GN1206 ↗ American-Style Anti-Jam | GN 1/2 · 65 mm | 0.7 mm | 420 g | 60 pcs | |
| AT07-GN1210 ↗ American-Style Anti-Jam | GN 1/2 · 100 mm | 0.7 mm | 500 g | 50 pcs | |
| AT07-GN1215 ↗ American-Style Anti-Jam | GN 1/2 · 150 mm | 0.7 mm | 630 g | 50 pcs | |
| AT07-GN12L ↗ American-Style Anti-Jam | GN 1/2 · Lid | 0.7 mm | 315 g | 100 pcs |
Total 59 variants · 1 / 5 pages
